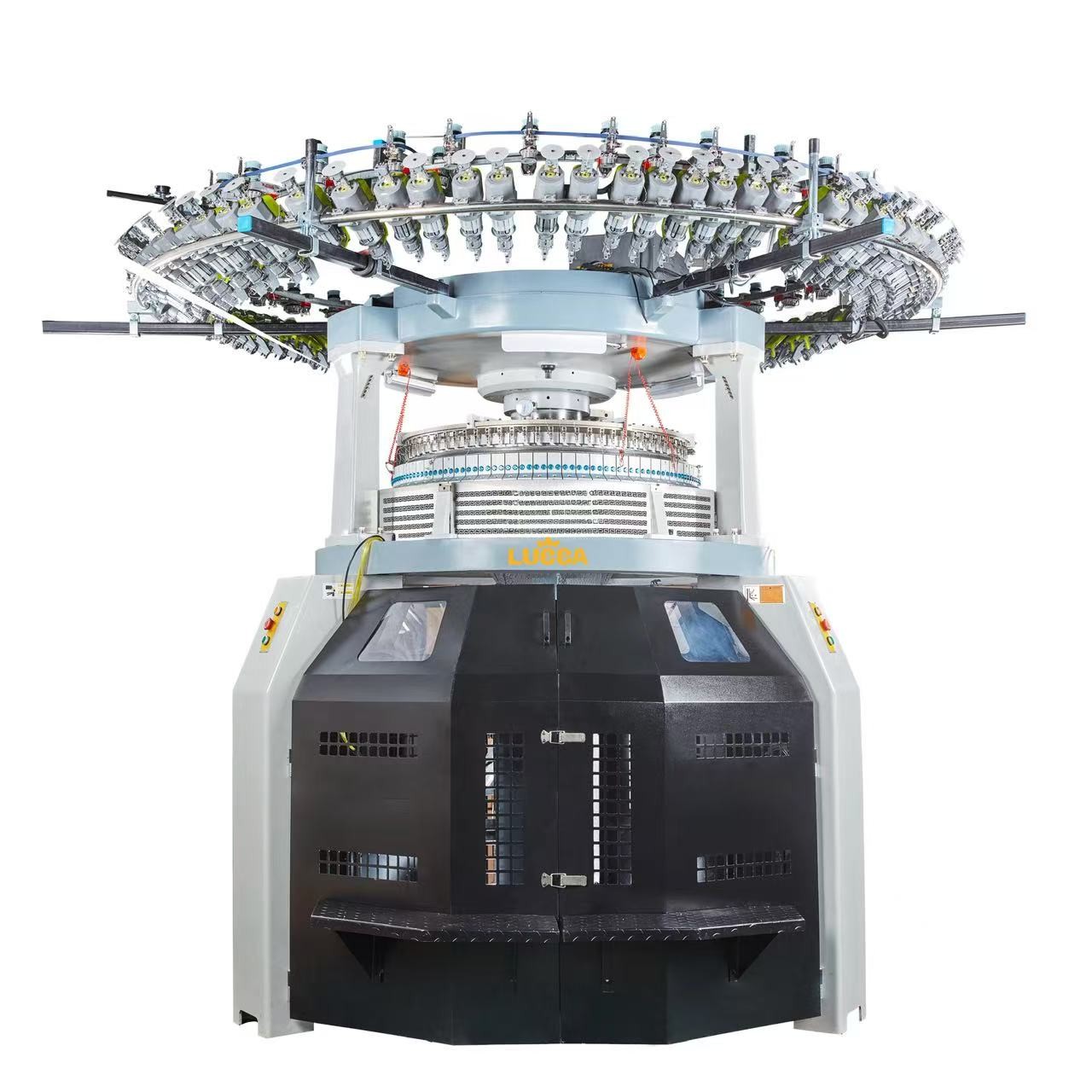

Electronic Jacquard Rib Circular Knitting Machine

TECHNICAL INFORMATION:

MODEL:DE

DIAMETER:30-38"

FEEDERS:60F-72F

GAUGE:16-24G

Original: Quanzhou, China

Port: Xiamen

Supply Ability: 5000Sets per Year

Certification: ISO9001,CE etc.

Price: Negotiable

Voltage: 380V 50Hz, the voltage can be as local demand

Payment term: TT, LC

Delivery date: 30-35days

Packing: export standard

Warranty: 1 year

MOQ: 1 set

MACHINE FEATURES:

1.Electronic Jacquard Rib Circular Knitting Machine Using aircraft aluminum alloy on main part of machine to improve heat dissipation performance and reduce force deformation of the cam box.

2.One Stitch Adjustment to replace the visual error of the human eye with machining accuracy, and the accurate scale display with the high-precision Archimedean adjustment makes the replication process of the same cloth on different machines simple and easy.

4.Adopting new designed frame of the machine, dial cam box base and sleeve have simultaneous displacement so that it becomes much exacter and simpler to adjust the needle tolerance and clearance between top and bottom.

5.The computerized actuators will make three positions needle-selecting of KNIT,TUCK,MISS. Any design of wave with complicated structure can be switched to the special control instructions by the computerized actuators on the machine, which makes single big jacquard fabrics.

6.The machine adopts the computerized actuators to select needles on the needle cylinder, which can weave jacquard for various designs.

7.Electronic Jacquard Rib Circular Knitting Machine design of the control system applies the most advanced micro processing technique, comblining electronic calculation processing system and the computerized actuator in the machine.

APPLICATION AREA:

This kind of machine could be used to produce double jacquard cloth , rib jacquard cloth , double full plate with spandex jacquard fabric , weft laid-in stitch fabric curtain fabric or mattress fabric weft laid-in stitch with yarn fabric , such as shoes fabric etc , this machine also could be used to produce terry jacquard cloth.

OUR ADVANTAGE:

Ø 1.Fast delivery

Our annual output can reach to 5000sets with advanced equipment.In our workshop there are more than 30 high-precision horizontal CNC machining centers, vertical CNC machining centers, more than 80 advanced processing equipment such as gear hobbing machines,groove milling machines, horizontal lathes, vertical lathes, and grinders.

Ø 2.Excellent research and development team

We have 15 knitting machinery designers with more than 20 years of experience, and can customize the production of circular knitting machines according to different fabric requirements.

Ø 3.The best quality

The core components of the circular knitting machine, such as the cambox, cam, cylinder, frame, castings, gears, etc., have all realized independent design and production, which can better control product quality.

Ø 4.The best competitive price

With 13 production workshops, 80% of the core components are produced by ourselves which greatly reduces the production costs.

FAQS:

1.Is your company a trading company or a manufacturer?

We are a high-tech enterprise engaged in the research,development,production and sale of circular  knitting machine with more than 20 years of experience in this field.

2.How can I place an order?

You can contact any of our sales partner for an order.Please kindly provide the details of your request as clearly as possible. So we can send you the offer at the first time.

For design or further discussion, we suggest you contact us with WhatsApp, Wechat or other social communication media in case of any delays.

3.When can I get the price?

Usually, the price is quoted within 24 hours after we get your inquiry. If it is urgent for you, please call us or inform us your e-mail so that we will give priority to your inquiry.

4.How do you delivery goods to customer?

Shipping options: by sea, by air or by express.

5.What kind of payment can you accept?

Optional payment includes Western Union or PayPal、T/T, L/C, etc.
